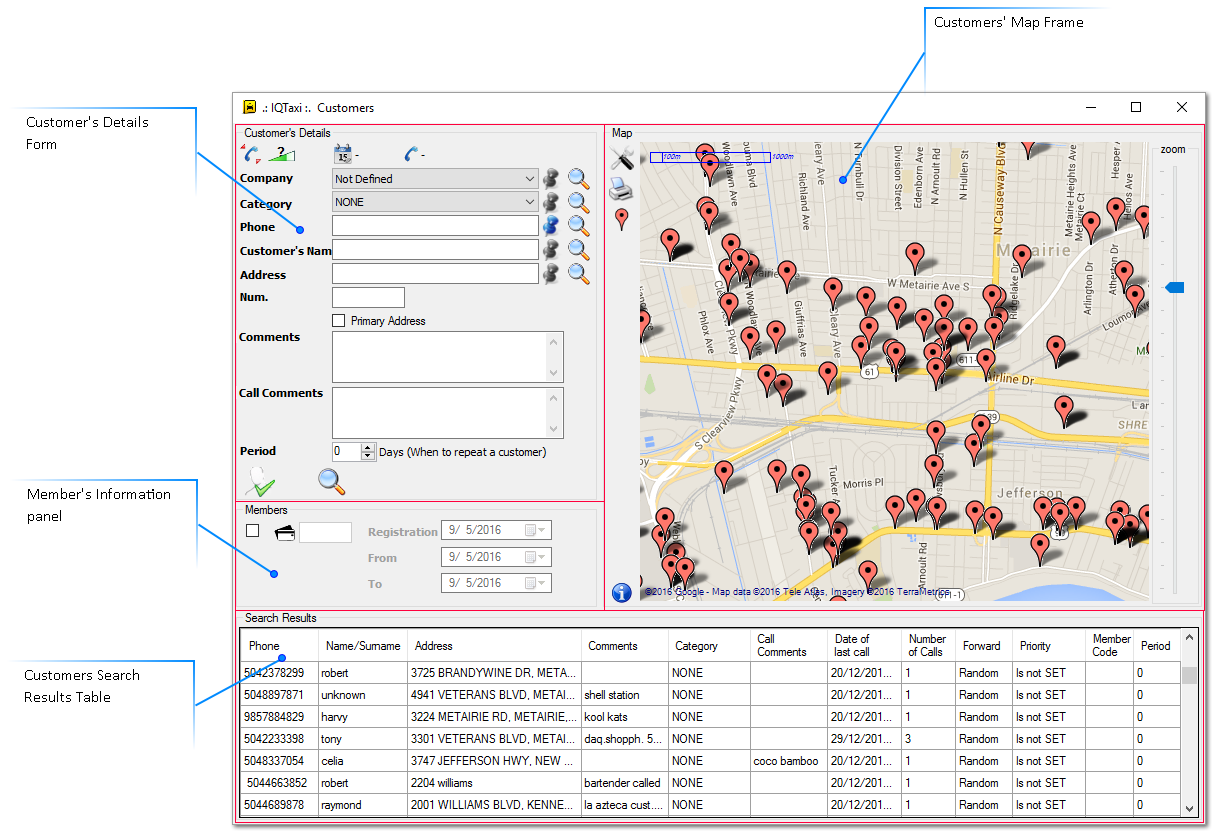

The Customers Form allows you to search for a registered customer, so as to view or edit his data attributes and location. You can also use the Customers Form to make new customers registration or to manage in advance level the stored information.

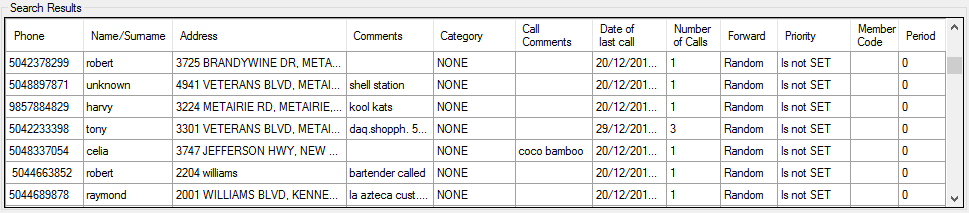

The Information table is a search results table that displays the stored data of selected customers.
The table updates it's records after a searching procedure and based on the applied filters. The
table consist of twelve columns that regards to the database fields and many rows, one for each
customer. The first row in the table displays the Field name of each column.
Data Sorting
The table's records are by default sorted based on the "Phone" field values (system default). If you
want to make a shorting based on an other field's data, you have to click once on the column's
name you desire. The sorting is automatically changed and an arrow appears on the selected
field, marking it active.
The direction of arrow indicates whether the sorting is in ascending or descending order . By clicking on the selected field header, the sorting can be changed from ascending to descending and vise versa.
Customer Selection from table
You can select a customer's record from the information table by double clicking on it. After selection,
the customer's information are stored on the Details Form and the map navigates (zoom in) to customers
location. You are able to edit the selected customer information on Details Form and save the changes

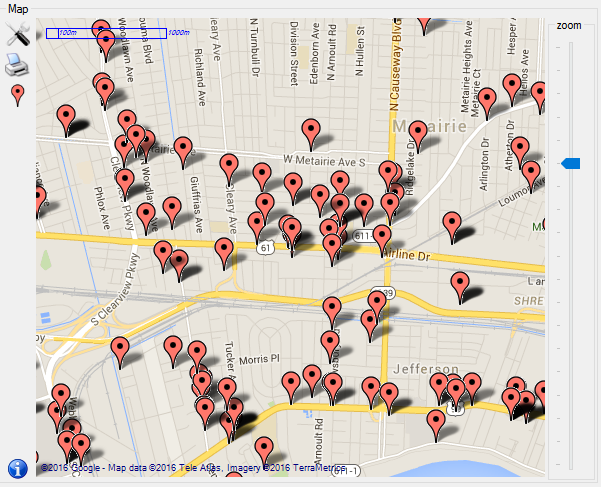

This frame displays a dynamic geographic map, extending usually over the service area of the car base that has been defined at the installation process. You can use the map to view the customers locations (address) or to point out the location of a new customer.
The customers locations are indicated on the map with the red pointers. To show or hide the pointers on the map chick on the "show points on the map" icon , on the upper left side of the frame.
The map frame supports four different map providers (Google, Yahoo, Bing, Open Street) allowing you to select the one you prefer for data viewing. You can select the map provider or switch between the available, clicking on the "map type" icon on the upper left side of the frame. Each provider has available three different map types to select, Road map, Satellite map and Hybrid map.
You can interact with the map and navigate to different map areas using your mouse with the following actions.
Zoom In /Out
Roll mouse wheel back and forth
Pan
Hold down left-click and drag
Add point
Right-Click on a specific location on the map
Return pointer address
Push down mouse wheel
To print a specific map view, click on the "print" icon on the upper left side of the frame.
